"W" Bolt Type DSL Busbar System

These Conductor are Compact, Insulated and easy to installation. V Compact design ensures Positive Contact. The Conductor are color coded RYBG.

They can be mounted in Horizontal or Vertical configuration.
The Conductor Bars are 4.5 Meters long to be supported at every one Meter. Design allows Uni/Multi pole mounting arrangement. Conductors can be Mounted Side by Side

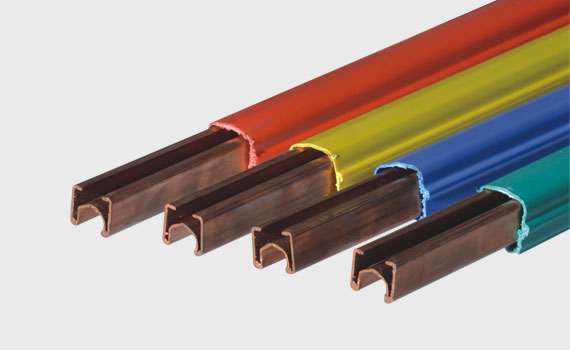

Copper Bolt Type DSL Busbar

Copper Bolt Type DSL Busbar

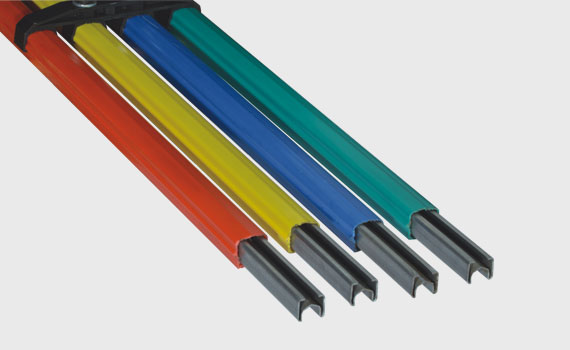

GI Bolt Type DSL Busbarr

GI Bolt Type DSL Busbar


  • Single Pole Hanger Clamp

    Single Pole Hanger Clamp

    Snap on insulated Single Pole Hanger Clamps designed for Horizontal / Vertical installations.

  • Four Pole Hanger Clamp

    Four Pole Hanger Clamp

    Snap on insulated Four Pole Hanger Clamps designed for Horizontal / Vertical installations.

  • Bolt Clamp Cover

    Bolt Clamp Cover

    Easy to fit, Snap on type, insulated joint Cover protects the joint.

  • End Cup

    End Cup

    The Open Ends / End Feeds of conductors are covered by end caps.

  • Brass Joint Clamp

    Brass Joint Clamp (Copprer Bus Bar)

    Bolted Joints are designed to rigidly join Conductor Bars. Two bolts on either side ensure Electrically and Mechanically strong joint Double Bolted design provides Smooth and Perfect Alignment at Joints. This allows smooth glide of Collectors.

  • GI Joint Clamp (GI Bus Bar)

    GI Joint Clamp
    (GI Bus Bar)

    Bolted Joints are designed to rigidly join Conductor Bars. Two bolts on either side ensure Electrically and Mechanically strong joint Double Bolted design provides Smooth and Perfect Alignment at Joints. This allows smooth glide of Collectors.

  • Anchor Clamp

    Anchor Clamp

    Plastic moulded Snap-on typewith self anchoring feature. For use at Anchor Points.
